SPECIFICATIONS

Brand Name: Samger

Origin: Mainland China

Item Length: 42cm

Special Features: Pocket Bike Engine Kit

Item Width: 42cm

Model Name: 80/100/110cc bicycle engine kit

Item Height: 21cm

Item Type: Kickstarters & Parts

Item Weight: 10.84kg

No. of Cylinders: 1 Cylinder

Displacement (ml): 2.5L / 100km

Material Type: Metal kit motor 80cc/100cc/110cc bicicleta

External Testing Certification: ce

Color:: silver/black/red 2 stroke engine

Tank Capacity:: 2L Bicycle engine kit

Displacement:: 80cc/100cc/110cc kit motor 80cc completo

Feature:: motor bicicleta

Fit for:: kit motor 80/100/110cc para bicicleta motorizada

Dear buyer:
pls notes we have the EU/US/UK/RU local warehouse,we will sent you the fast shipping,let you enjoyShopping!



PLS NOTE:

1. Exhaust Muffler of 80CC Engine kit shipping from US/UK will send black or silver color randomly!!

2. 80CC Engine Cylinder Block shipping from RU maybe no LOGO sign,it is ship randomly!!!

3.The data only for reference,hope can understand.





Feature:

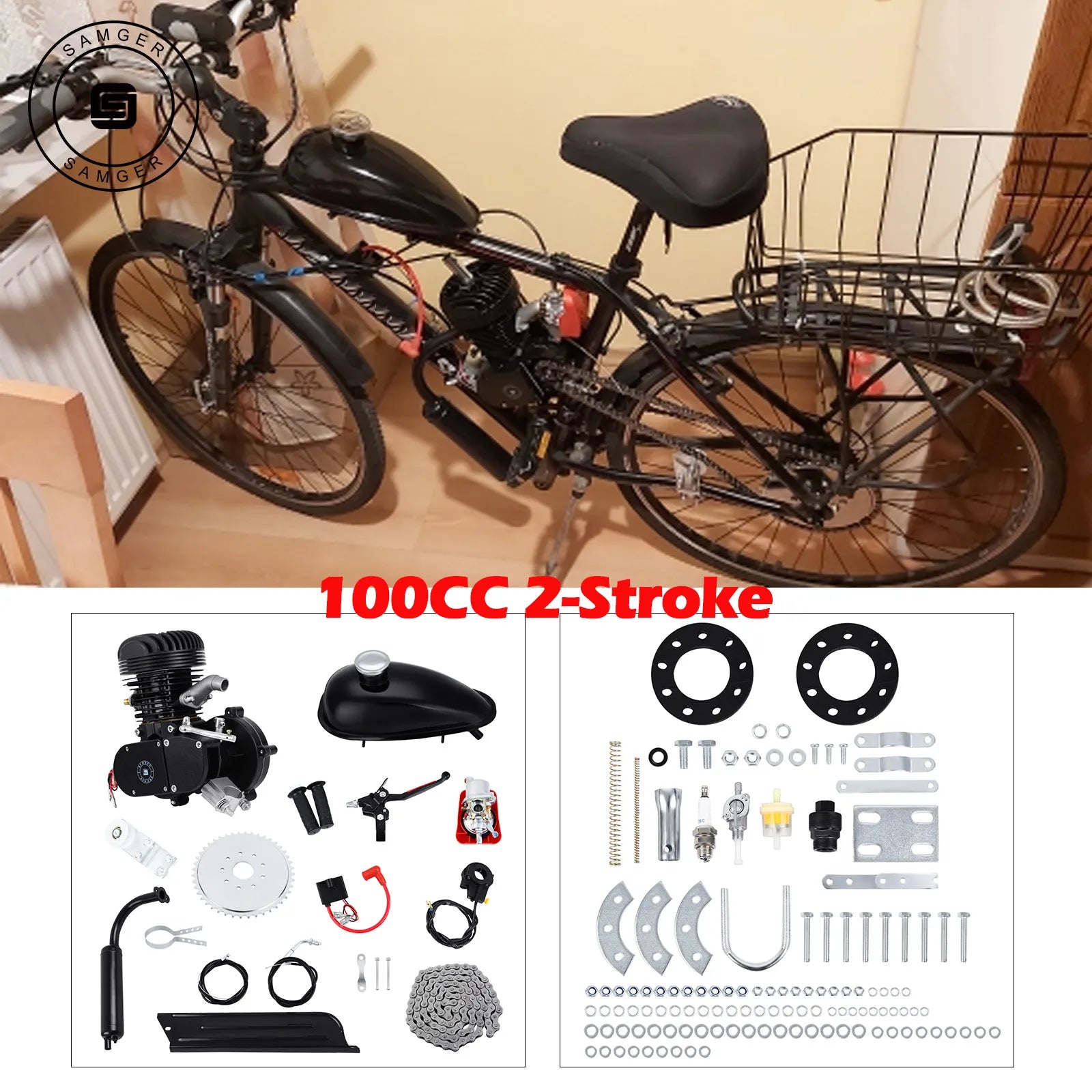

A complete engine kit to convert your bike;

Rugged metal body for durability;

Super efficient fuel, Fast and smooth;

Comes with all the necessary hardware for easy installation;

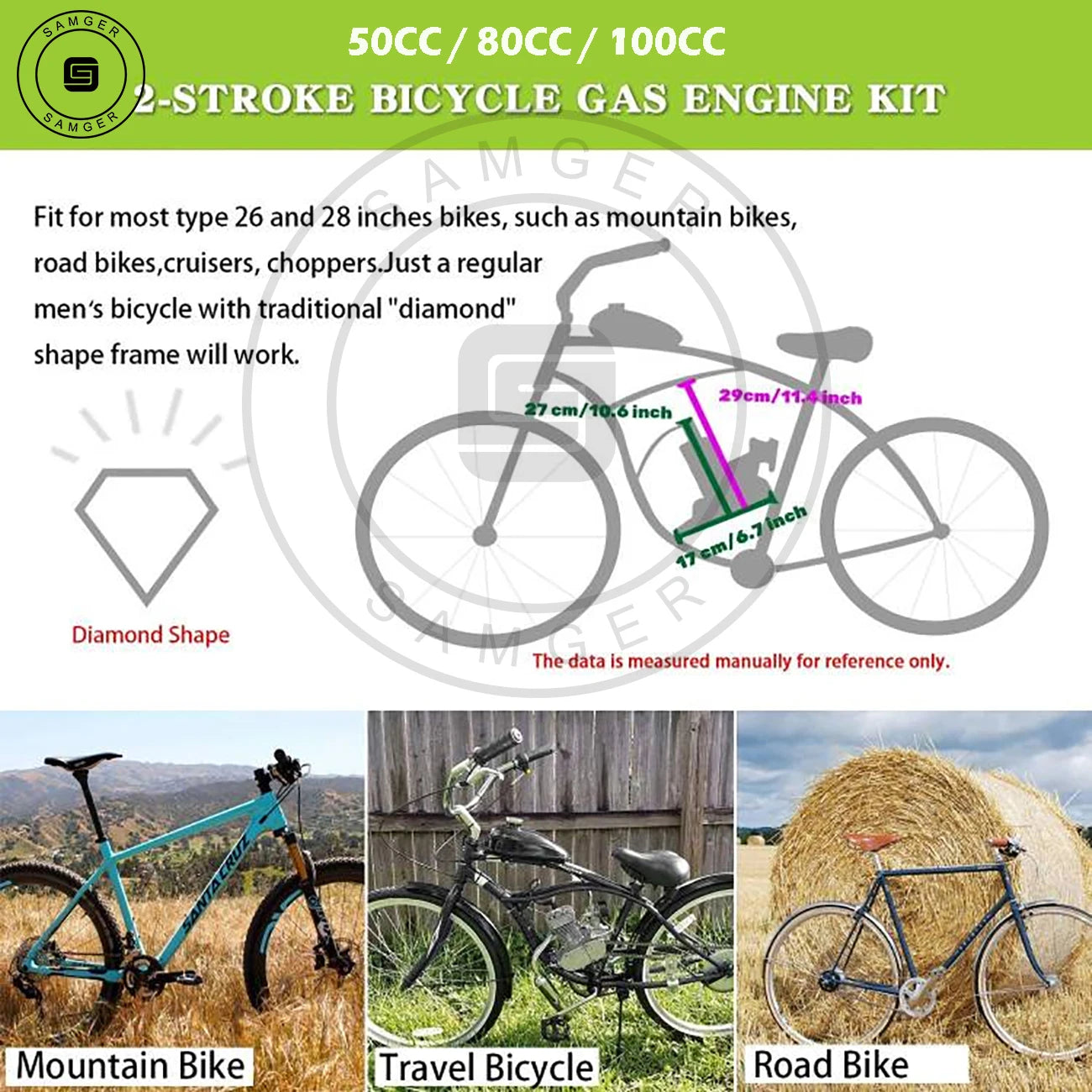

Suitable for most 26 "and 28" regular bicycles , such as mountain bikes, road bikes, cruises, helicopters.

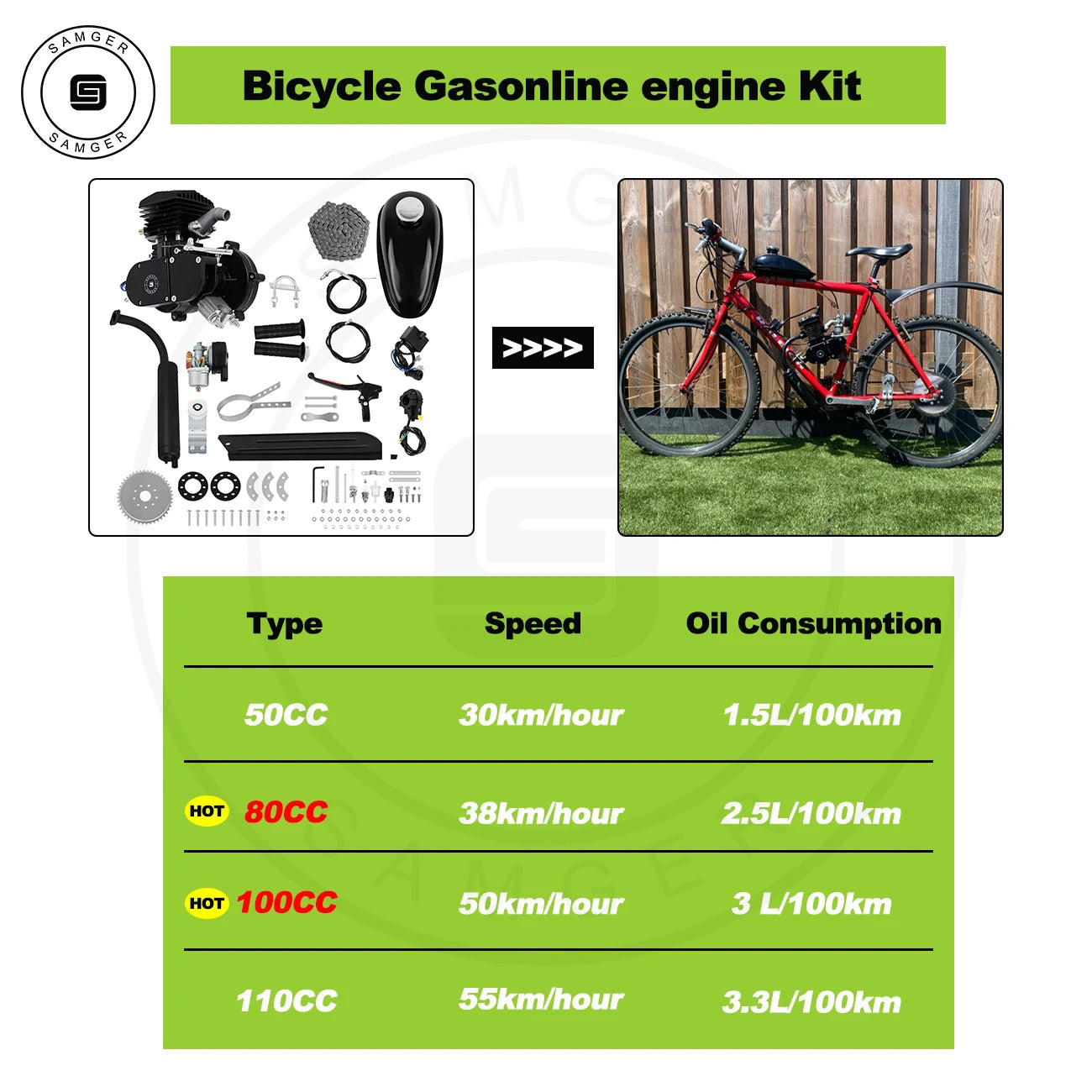

Speed & Oil Consumption:







Specification:





Color:Silver / Black / Red

Engine mode: Single cylinder, air cooling, 2 stroke

Bore and stroke(aprox.): 50CC-40mm & 38mm; 80CC-47mm & 40mm; 100CC-49mm & 40.2mm;

110CC-49mm & 40.2mm

Power Mode: CDI

Chain Model: 415

Chain Length: 110 links

Compression ratio: 6: 01

Driving Ratio: 18: 01

Tank Capacity: 2L

Type of ignition plug: Z4C 14MM

Clutch Type: friction / dry plate

Cooling mode: Natural air cooling

Start method: Electric/Kick

Cooling Mode:Natural air cooling

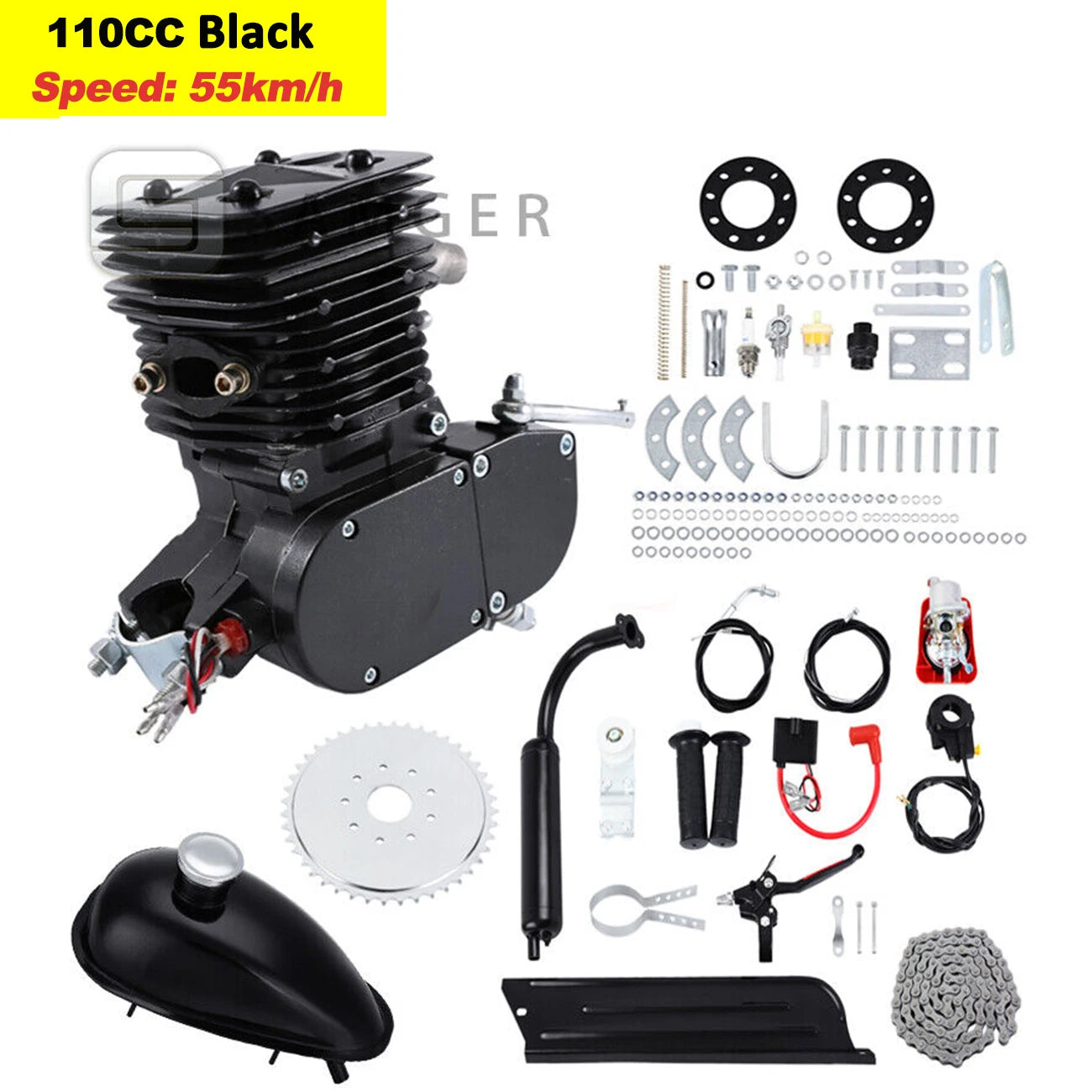

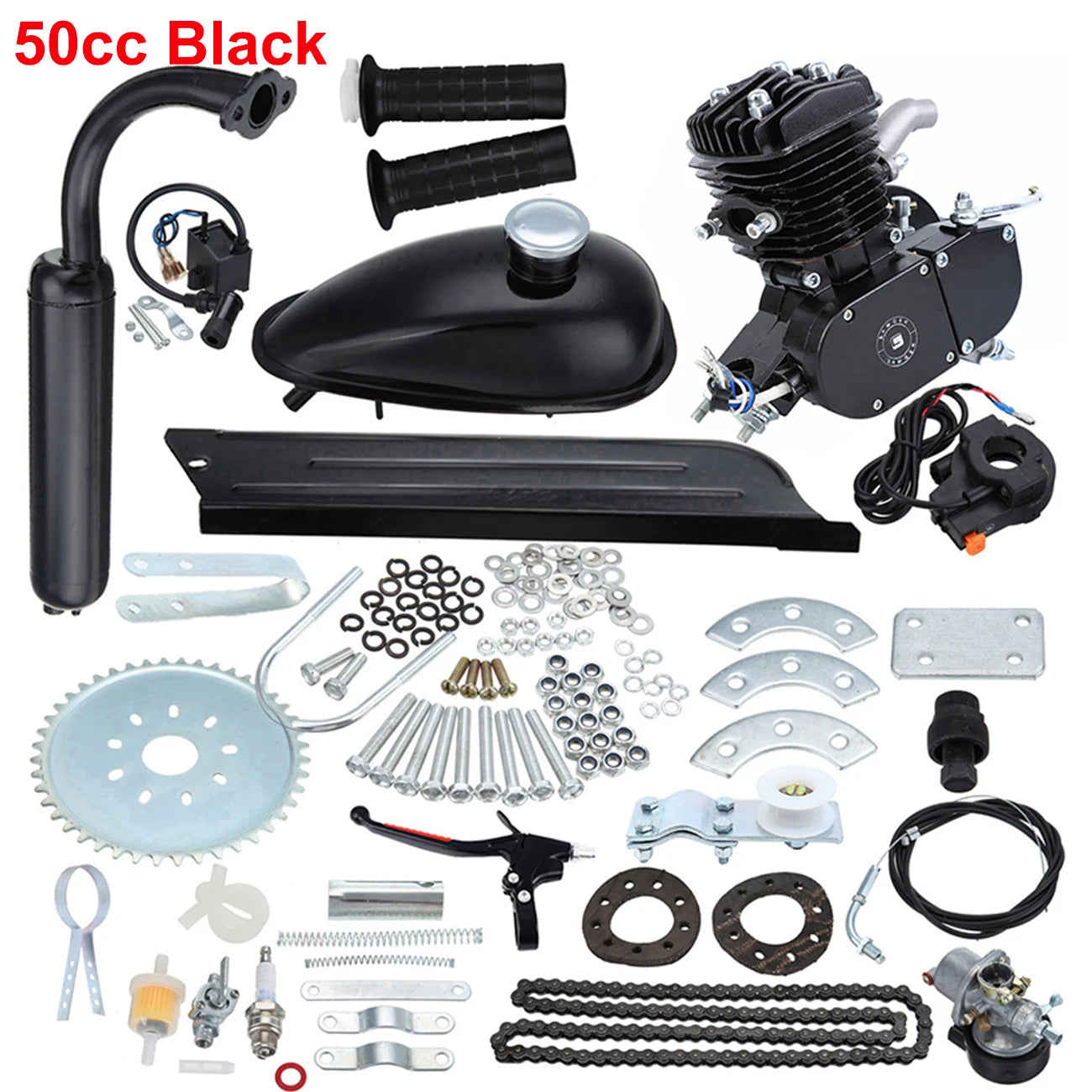

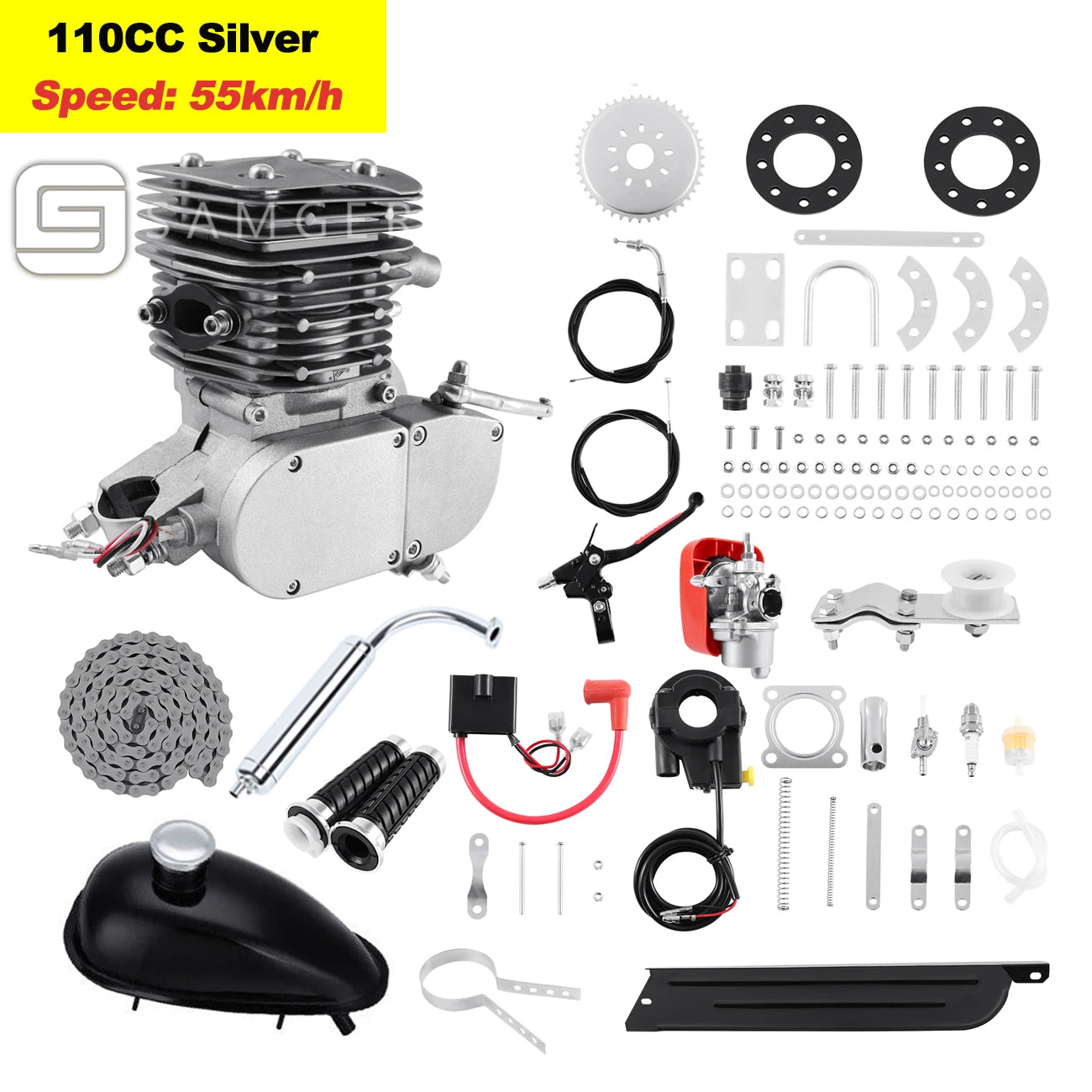

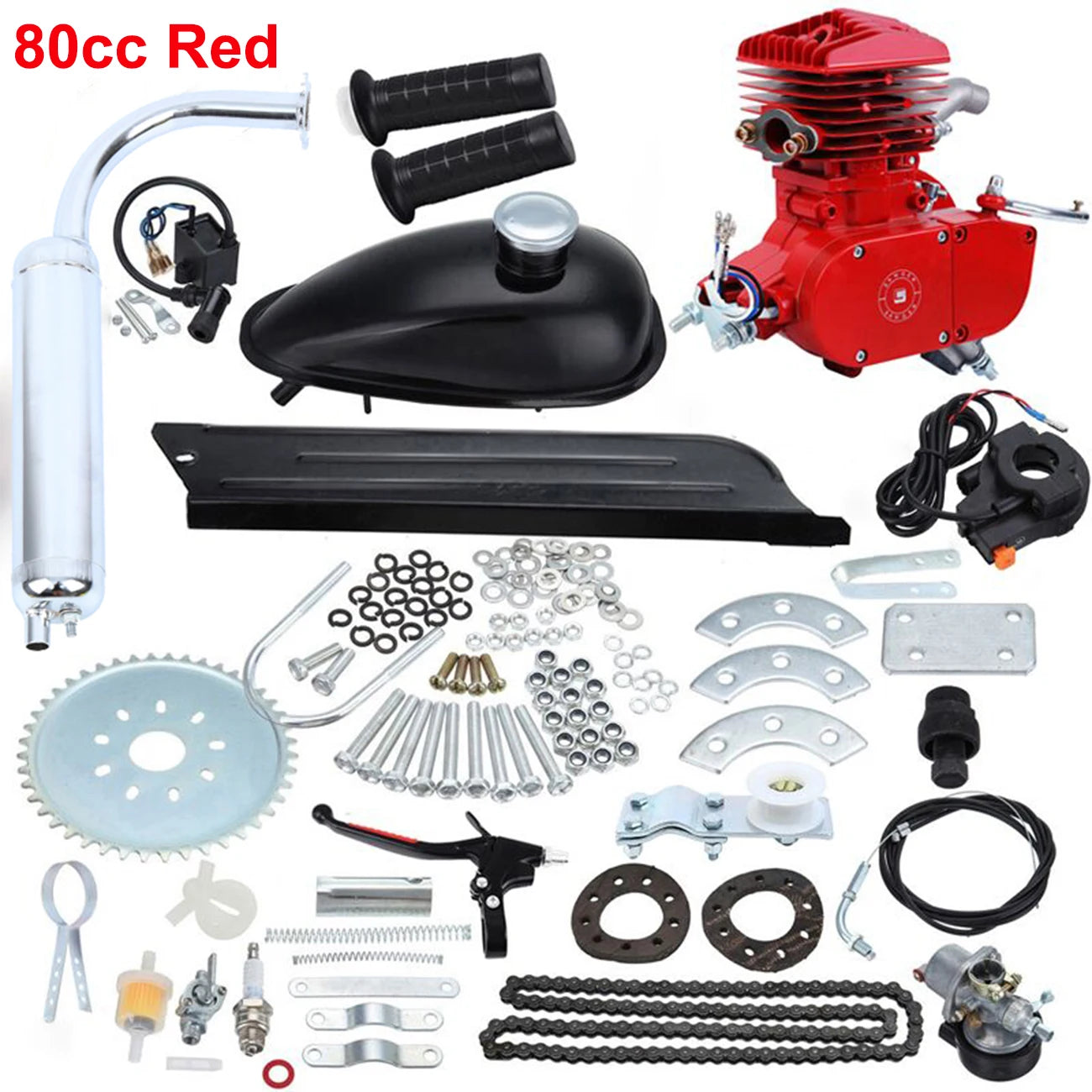

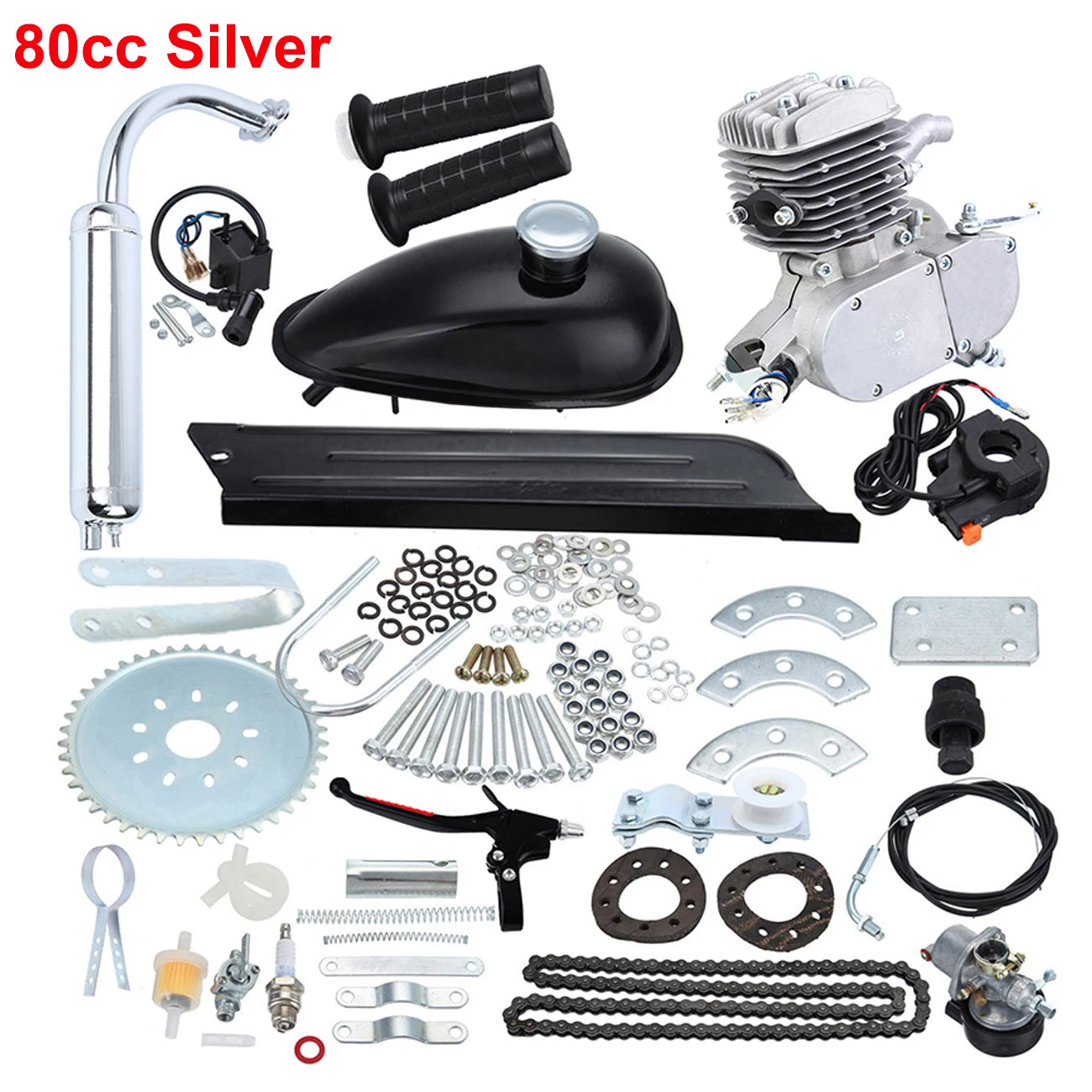

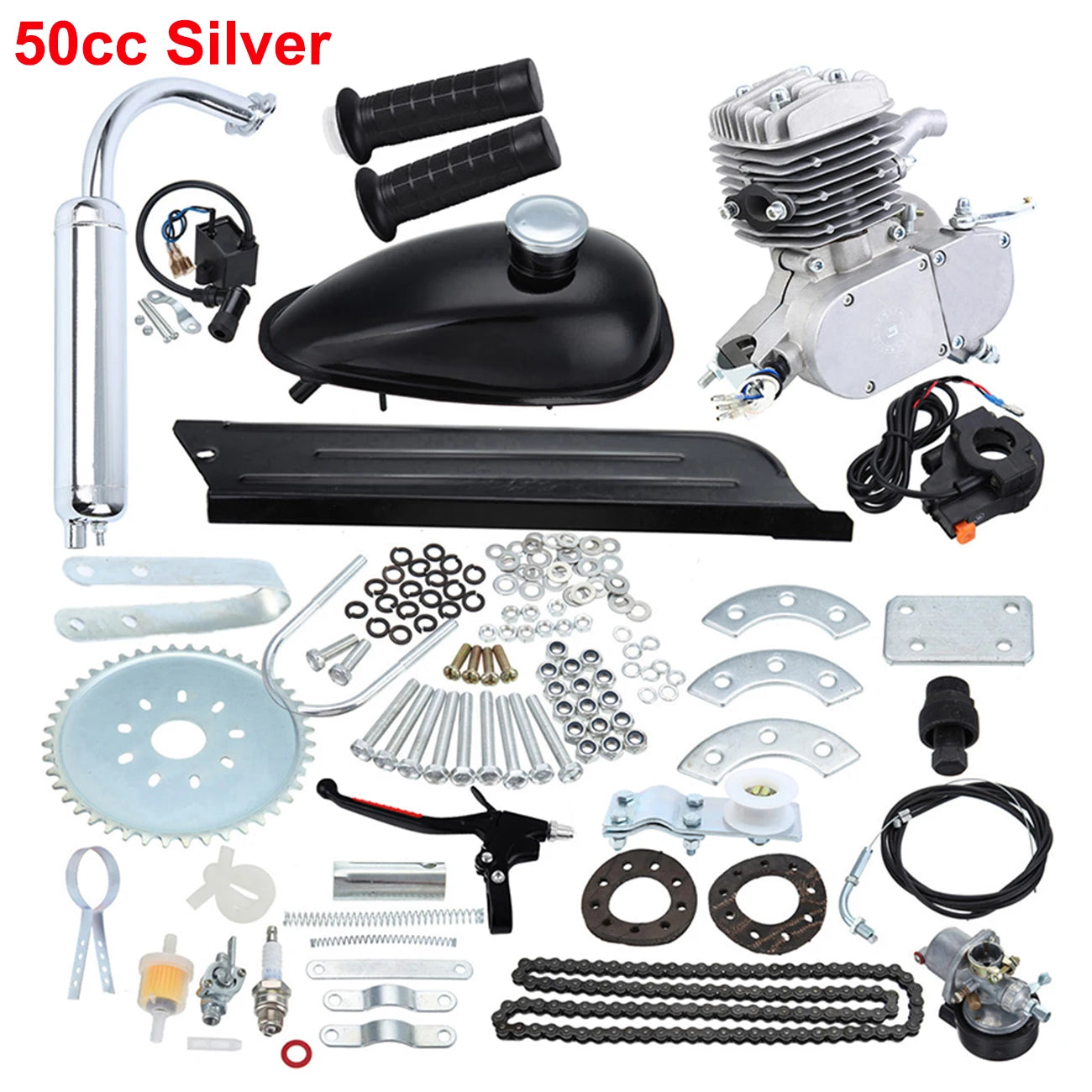

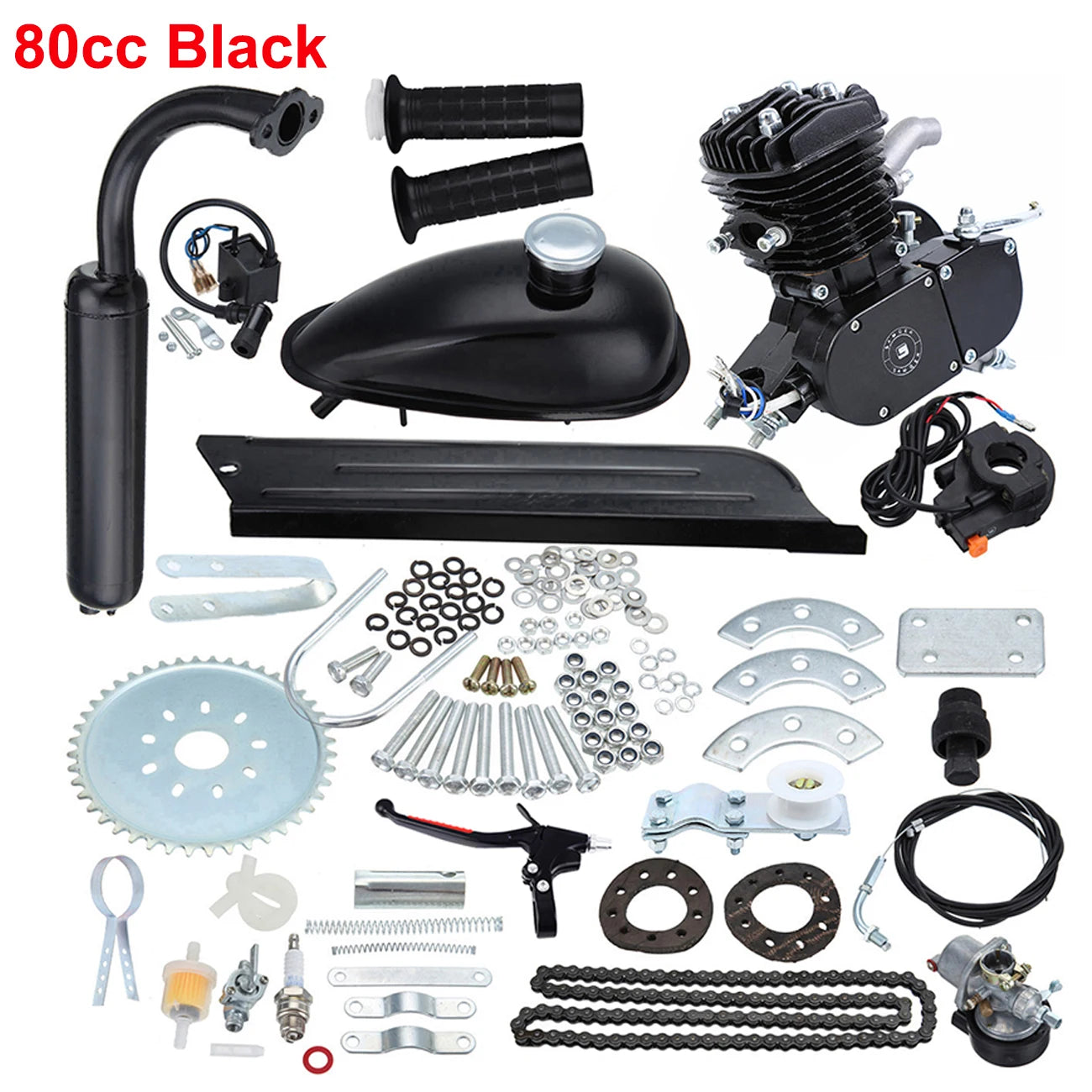

Package included:

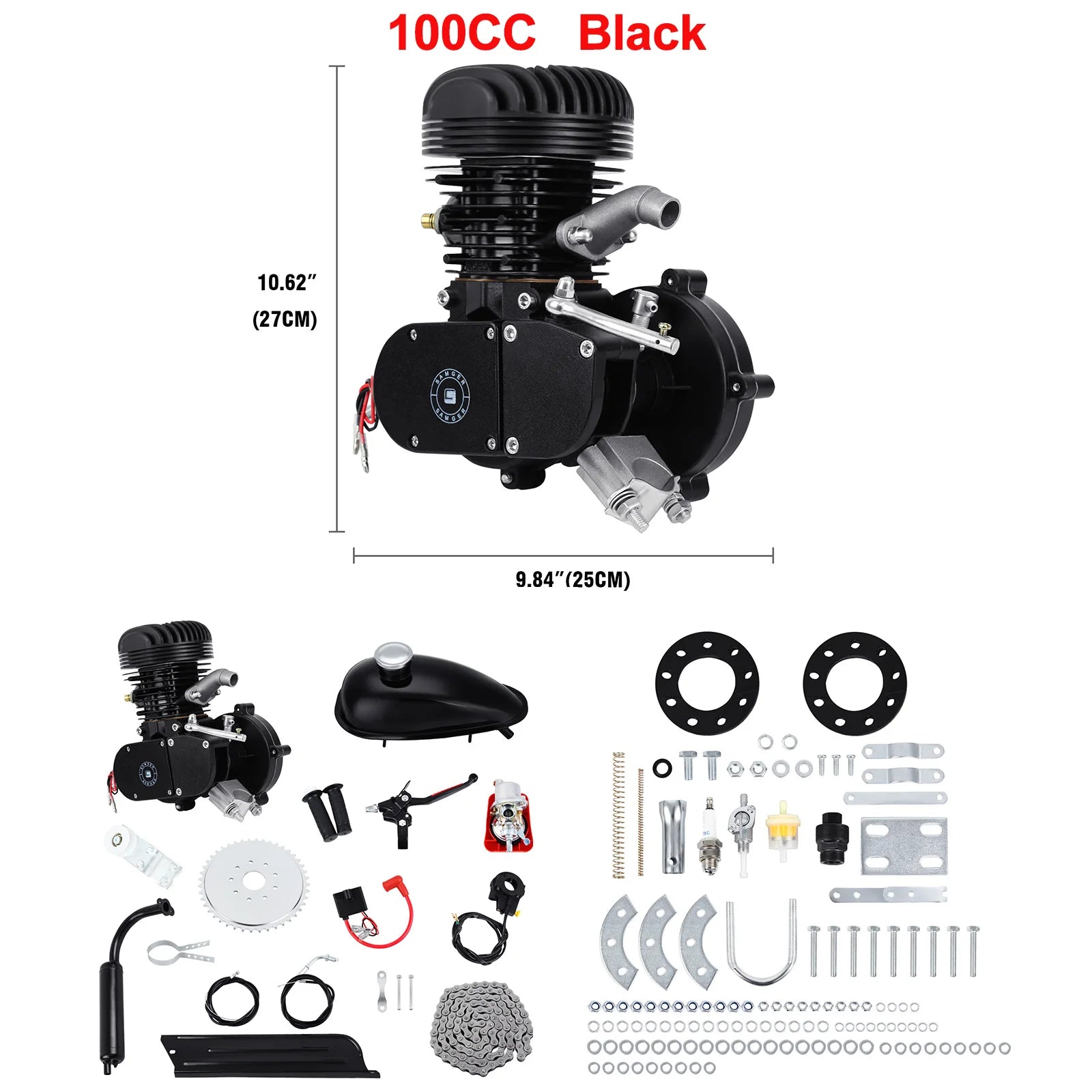

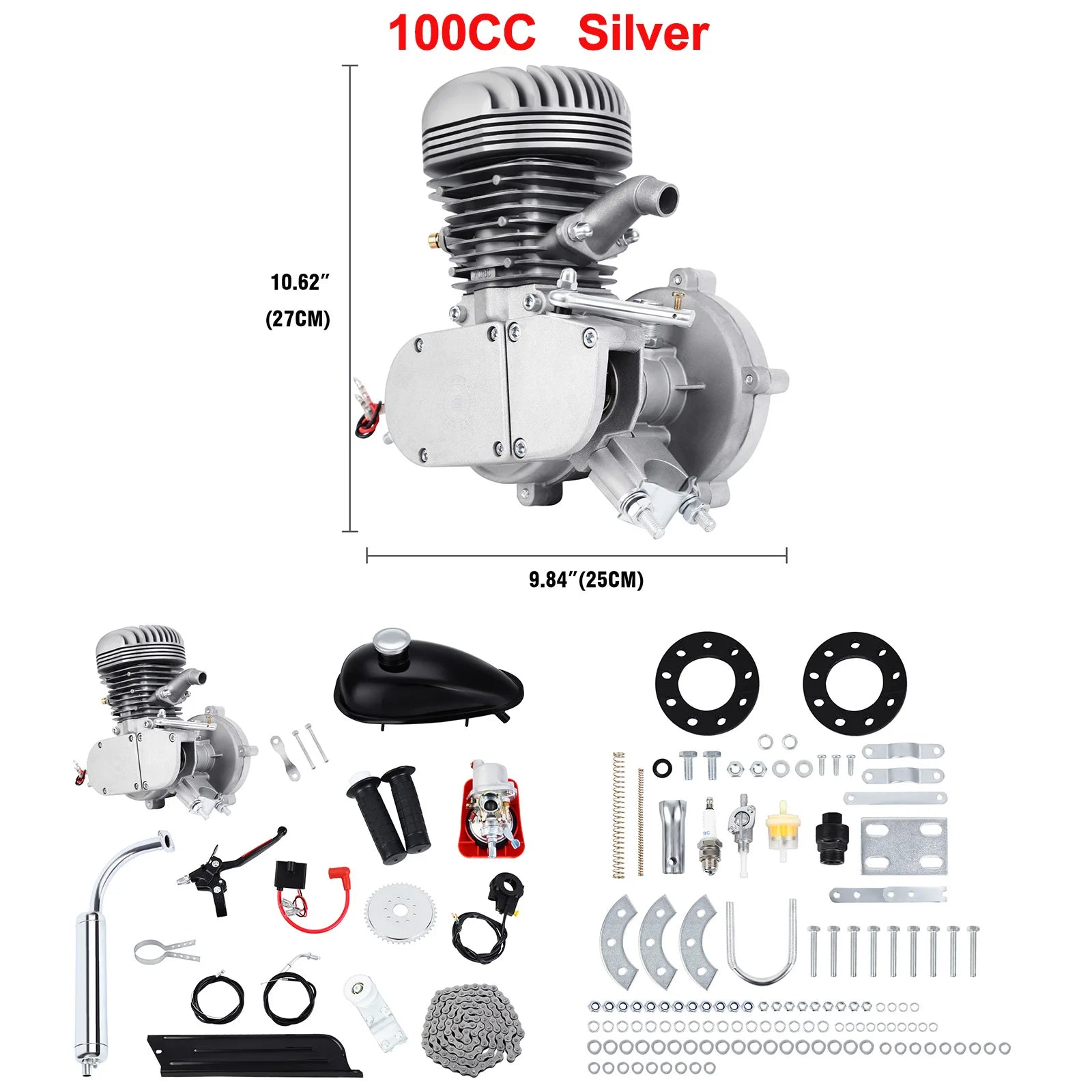

1x 50cc/80cc/100cc/110cc 2-stroke engine (Color& Type Depending on your choice)

1x Pinion clamp with hardware

1x Exhaust Muffler

1x button clutch

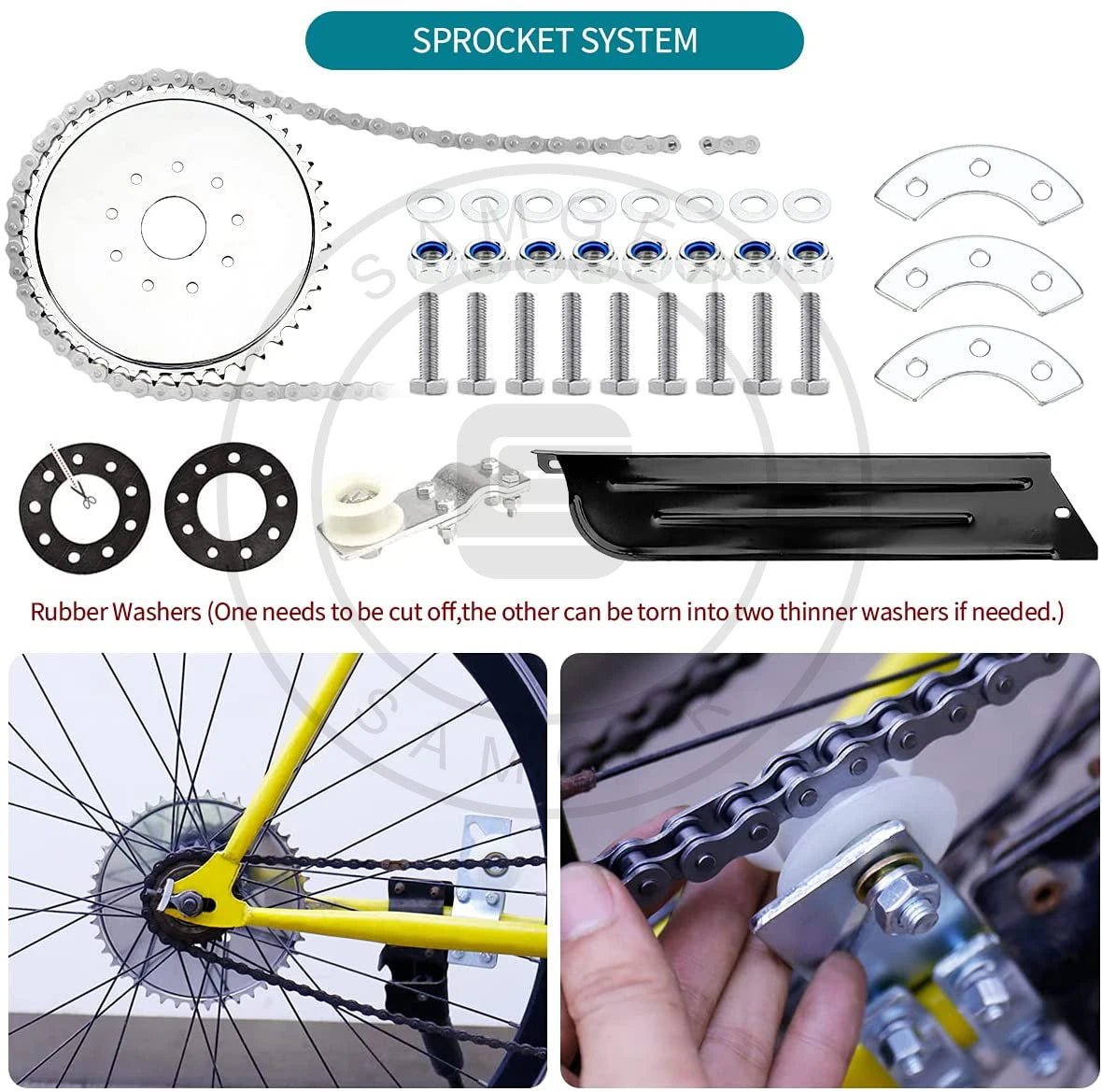

1x heavy chain

1x bearing / brake chain tensioner

1x Carburetor

1x CD ignition coil

1x Lock switch (on the throttle)

1x Chain Protector

1x Spark Plug

1x Black fuel tank with mounting brackets

1x Exhaust Pipe Clamp

1x plug removal tool

1x Manual

(notes: The kit includes all the parts and instructions necessary to convert your bike.)







About Question:

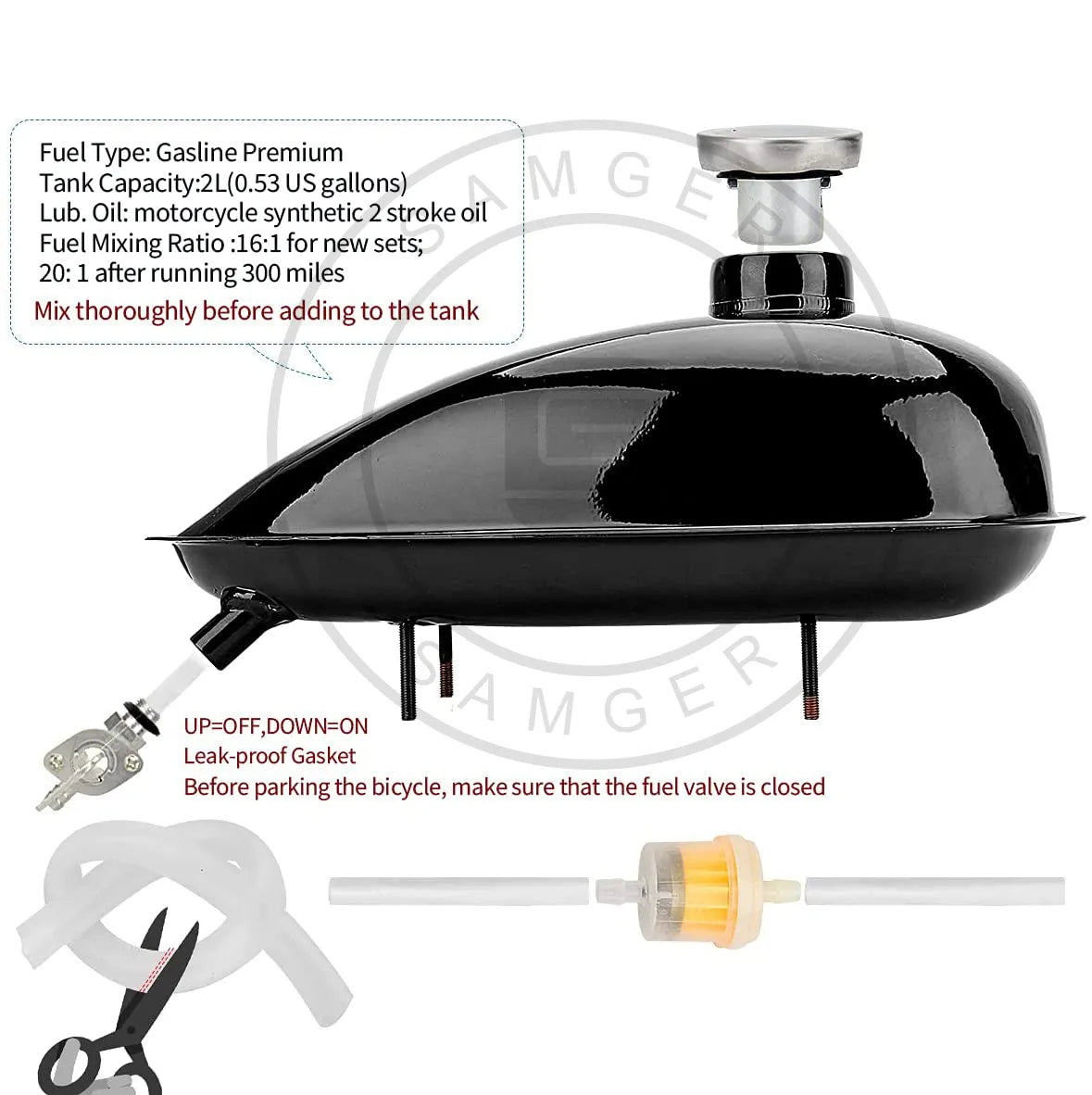

1.About fuel and oil:



-- The gasoline engine needs to use the mixed mix of gasoline and oil.The oil is used as a lubricant. Without it, the performance and longevity of the motor will be reduced.



-- Fuel Type: No.90



-- Mixing Ratio of Fuel and engine Oil:10:1(Mixing ratio of fuel and engine oil: 16: 1 for new assemblies, 20: 1 after running 500 km)



-- Lubrication Oil: 2-stroke gasoline engine oil (or oil for 10W / 40,10W / 30)

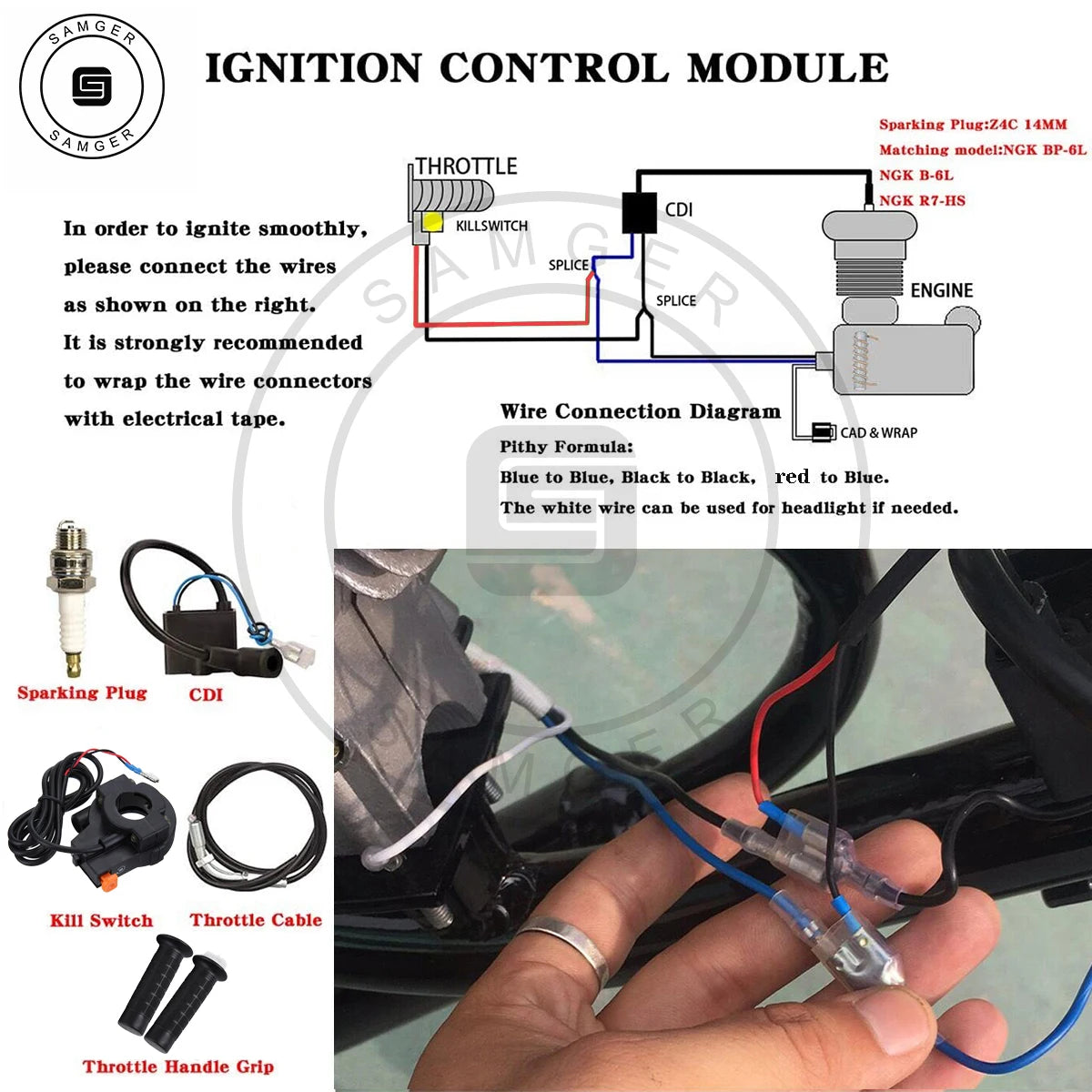

2.About the engine line connection:



-- The white line don't need to connect,it only need to connect blue to blue ,black to black.(White line's function as same as the blue one,but pls note the white line can not connected for the lighting.)



3.Can I ride bicycle without the help of the engine?



--Yes,you can.You will be able to stop or start the engine as you ride.By pressing the clutch handle,you can stop engine.



4.Can my bicycle size fit this gasoline engine?



--Pls refer our product detail to check the size of your bicycle, our engine kit fit for above 26''bikes with V-frame.if you still uncertain,pls contact with our customer serives,we will check for you.



5.Please refer to the manual for further information.If you have any questions,please contact us for the technical solutions.
